This is a 10 Foot Length of Saxton M17/163-0001 RG8, MIL SPEC 50 Ohm Coax Cable for Radio (Ham, CB, Marine, etc.) or other RF Communication Applications. This Cable Meets MIL-C-17 Specifications.

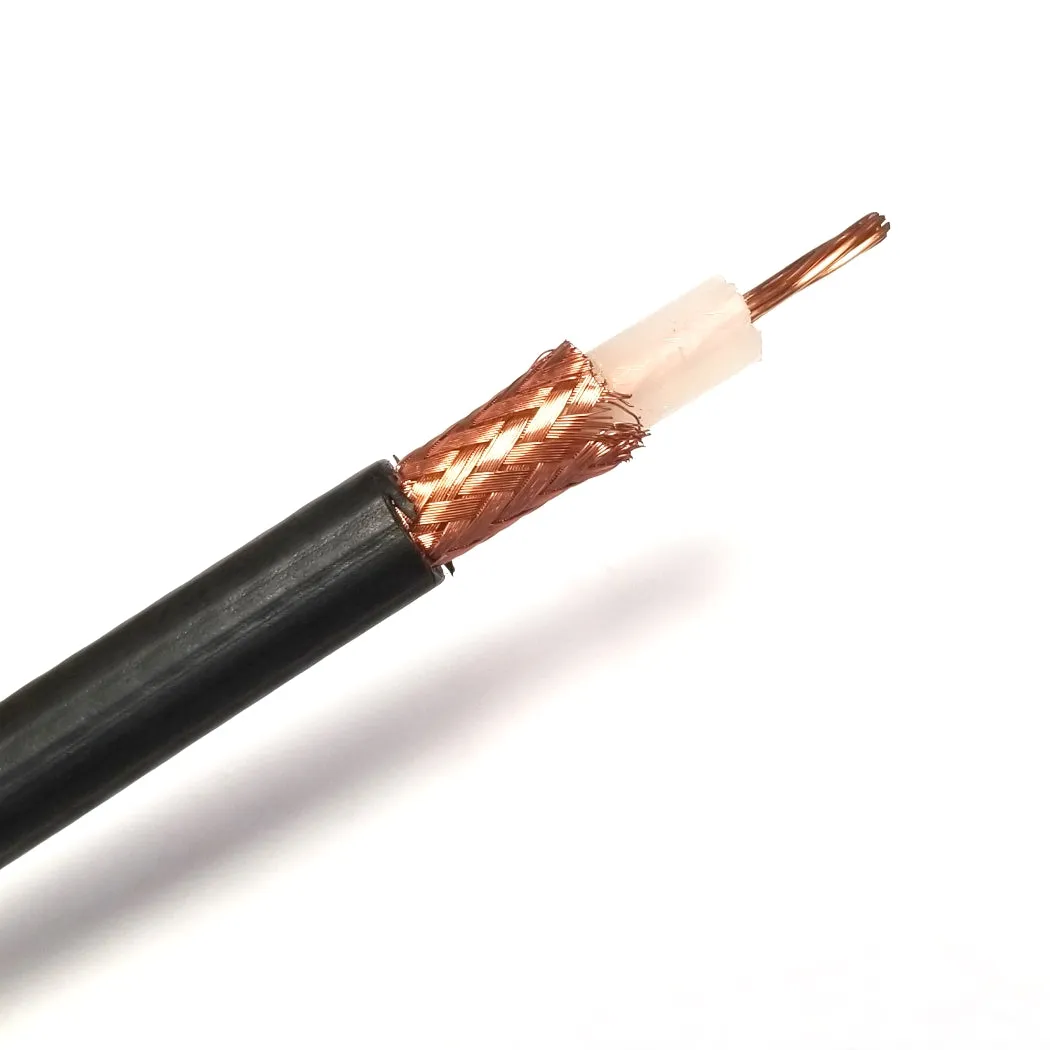

This Cable has a BLACK Colored PVC-IIA (PolyVinyl Chloride) Jacket. The Coax has a 0.088" (2.26mm) Bare Copper Stranded Center Conductor, a PE (Polyethylene) Dielectric Material and a Bare Copper Braid Shield. This Coax cable has a 50 Ohm Impedance.

FEATURES:

• Impedance: 50 Ohms
• Capacitance (pF/ft): 30.8
• Overall Nominal Diameter: 0.405 in.

• Conductors: 0.088" (2.26mm) Bare Copper Stranded Center Conductor, a PE (Polyethylene) Dielectric Material and a Bare Copper Braid Shield in an overall PVC (PolyVinyl Chloride) Jacket
• Shielding: Bare Copper Braid Shield
• Operating Temperature Range: -40°C To 85°C
• Maximum Operating Voltage: 5,000 Volts(rms)
• M17 Test Frequency: 400MHz UnSwept
